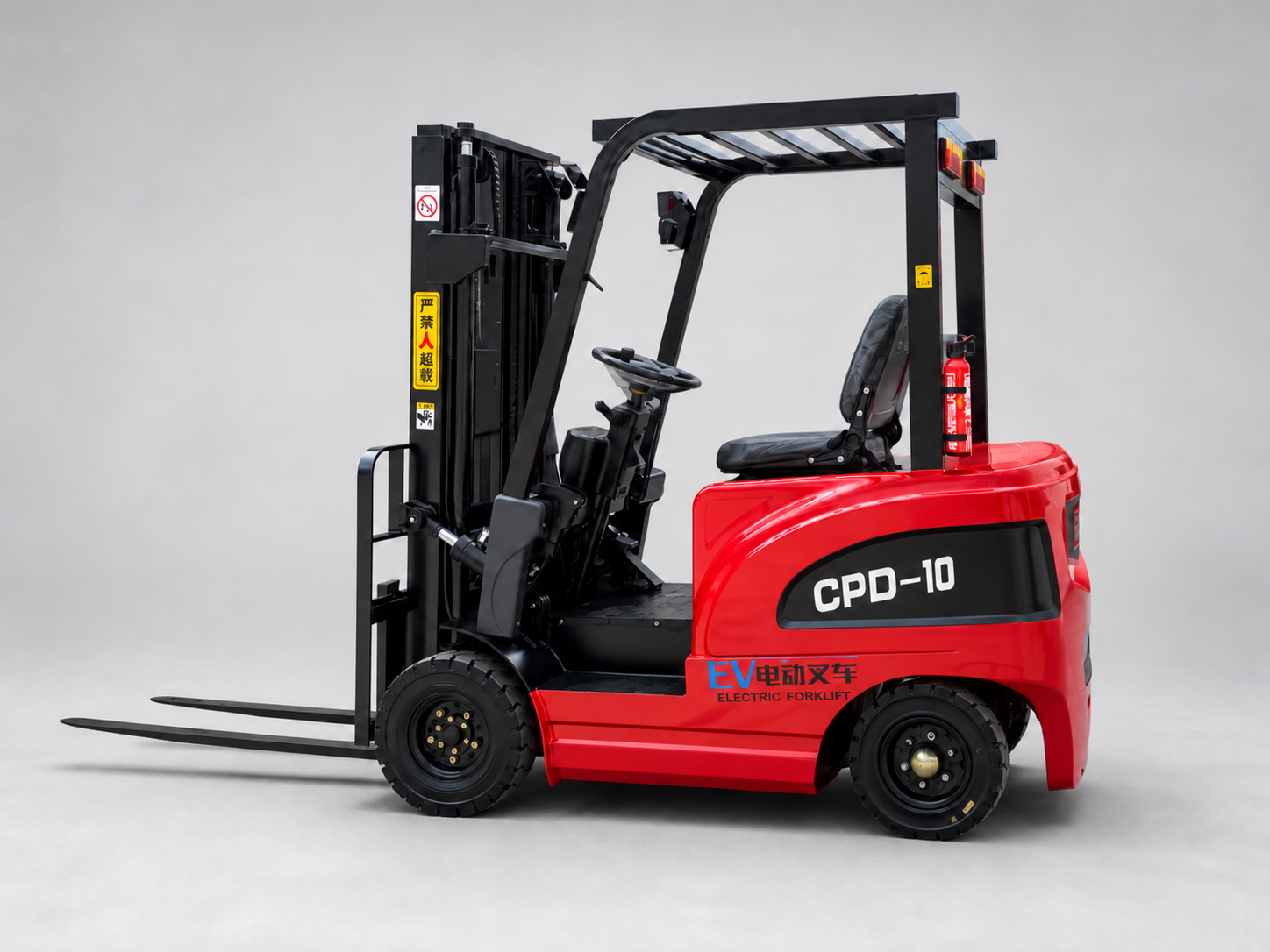

STUDIO VIEW · CPD-10
ELECTRIC FORKLIFT
CPD-10
1.0 Ton Three-Wheel Electric Forklift
Factory-direct electric forklift configurable for distributor and industrial buyer requirements.
- RATED CAPACITY
- 1,000 kg
- STANDARD LIFT
- 2,000 mm
- BATTERY
- 48V / 52Ah
- TURNING RADIUS
- 1,500 mm
✓ Technical confirmation before production✓ Product documentation as available✓ OEM configuration support
BUILT FOR DAILY OPERATION
ELECTRIC POWER.
PRACTICAL CONTROL.
Quiet operation, zero local emissions and fewer routine service items make the platform suitable for indoor material flow.
STANDARD & OPTIONAL EQUIPMENT
CONFIGURE CPD-10 FOR THE JOB.
● Standard equipment ○ Optional equipment. Final availability is confirmed in the technical agreement.
COMPLETE TECHNICAL DATA
CPD-10 PERFORMANCE SPECIFICATIONS

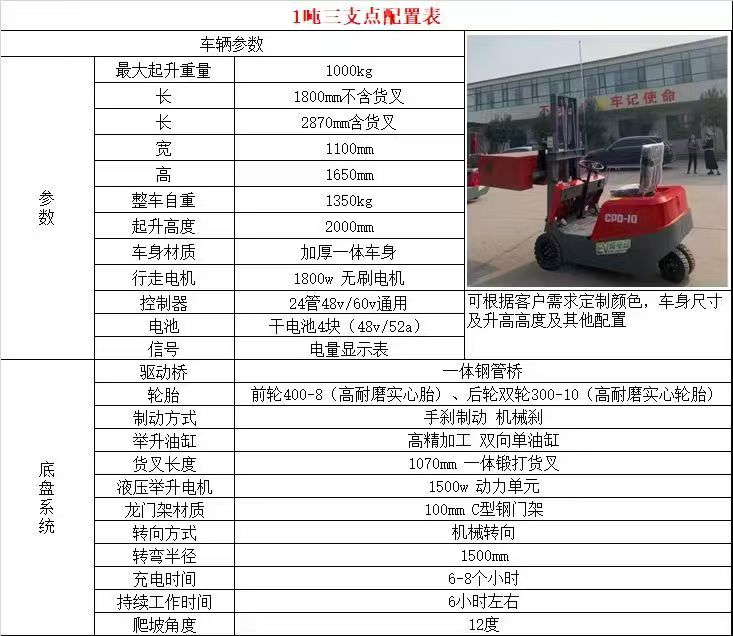

Values below are transcribed from the latest confirmed vehicle information sheet. Final configuration is governed by the signed agreement.
Core specifications
| Rated capacity | 1,000 kg |
|---|---|
| Standard lift height | 2,000 mm |
Vehicle dimensions
| Overall length, without forks | 1,800 mm |
|---|---|
| Overall length, with forks | 2,870 mm |
| Overall width | 1,100 mm |
| Overall height | 1,650 mm |
| Service weight | 1,350 kg |
| Body construction | Reinforced one-piece body |
Electrical system
| Drive motor | 1.8 kW brushless motor |
|---|---|
| Controller | 24-tube controller, compatible with 48V / 60V systems |
| Battery configuration | Four dry batteries |
| Battery voltage / capacity | 48V / 52Ah |
| Charging time | 6–8 hours |
| Continuous working time | Approx. 6 hours |
Chassis & handling
| Drive axle | One-piece steel tube axle |
|---|---|
| Tires | Front 400-8 solid / Rear dual 300-10 solid |
| Service brake | Mechanical hand brake |
| Steering | Mechanical steering |
| Turning radius | 1,500 mm |
| Gradeability | 12° |
Mast & forks
| Lift height | 2,000 mm |
|---|---|
| Mast | 100 mm C-section steel mast |
| Lift cylinders | Twin lift cylinders with bidirectional oil cylinder |
| Fork length | 1,070 mm high-manganese-steel forks |
| Hydraulic lift motor | 1.5 kW single motor |
Configuration
| Power display | Standard |
|---|---|
| Custom color | Available on request |
| Vehicle size / lift height | Configurable on request |
