Standard configuration
●Rain canopy · قياسي
●220V charging gun · قياسي
●Lighting and signals · قياسي
○380V rapid charger · اختياري
العربية

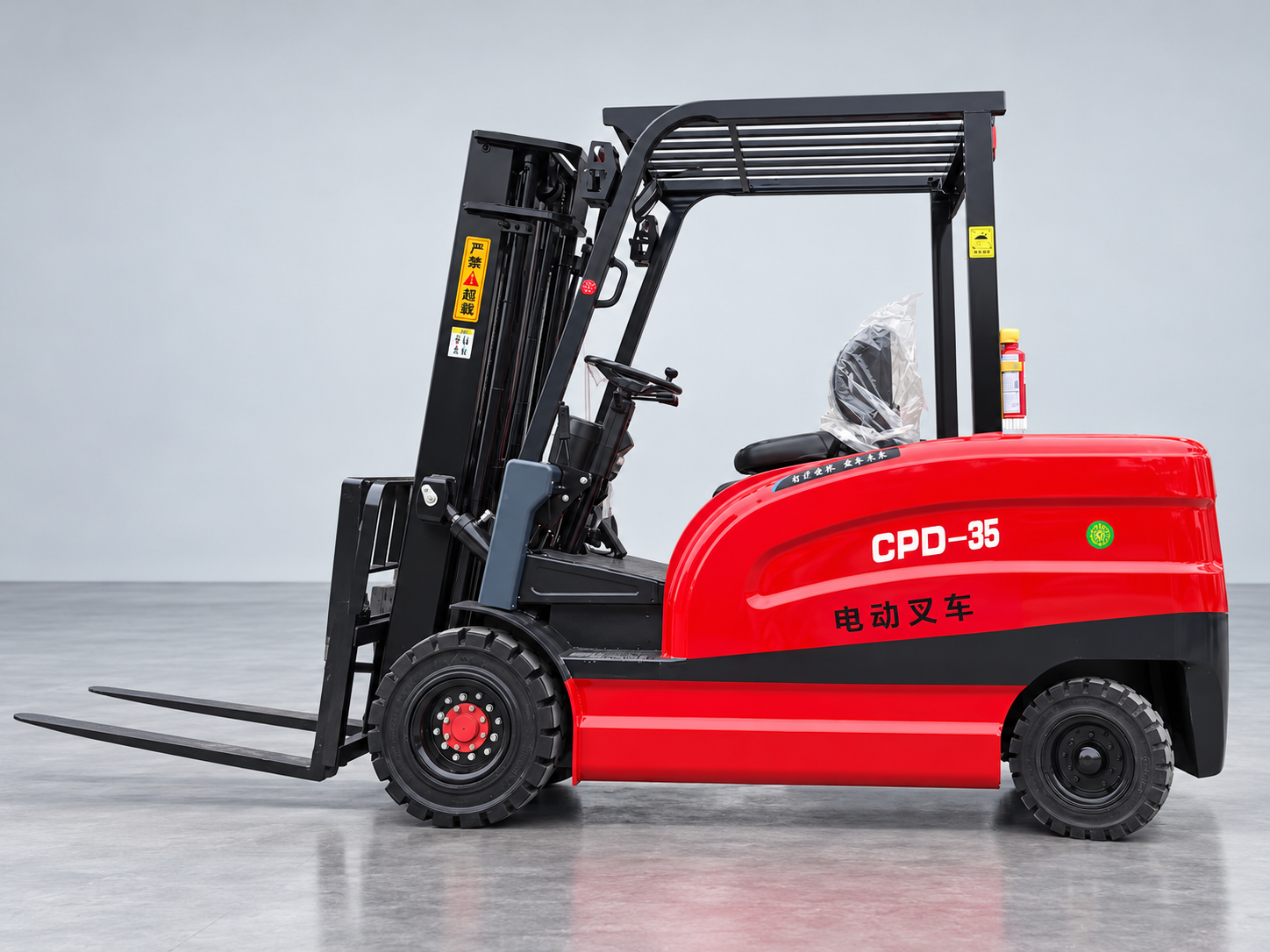

STUDIO VIEW · CPD-35
ELECTRIC FORKLIFT
CPD-35
3.5 Ton Lithium Electric Forklift
Factory-direct electric forklift configurable for distributor and industrial buyer requirements.
- الحمولة الاسمية
- 3,500 kg
- ارتفاع الرفع
- 3,000 mm
- البطارية
- 60V / 500Ah
- نصف قطر الدوران
- 90° in-place steering
✓ Technical confirmation before production✓ Product documentation as available✓ OEM configuration support
مصمم للعمل اليومي
ELECTRIC POWER.
رقابة عملية.
Quiet operation, zero local emissions and fewer routine service items make the platform suitable for indoor material flow.
التجهيزات القياسية والاختيارية
CONFIGURE CPD-35 FOR THE JOB.
● Standard equipment ○ Optional equipment. Final availability is confirmed in the technical agreement.
COMPLETE TECHNICAL DATA
CPD-35 PERFORMANCE SPECIFICATIONS
Values below are transcribed from the latest confirmed vehicle information sheet. Final configuration is governed by the signed agreement.
المواصفات الأساسية
| الحمولة الاسمية | 3,500 kg |
|---|---|
| ارتفاع الرفع القياسي | 3,000 mm |
| الوزن التشغيلي | 4,200 kg |
Vehicle dimensions
| Overall length, without forks | 2,900 mm |
|---|---|
| Overall length, with forks | 3,980 mm |
| العرض الإجمالي | 1,300 mm |
| Overall height | 2,150 mm |
| Body construction | Heavy-duty pressed-steel body |
Electrical system
| Drive motor | 15 kW Hart permanent-magnet synchronous motor |
|---|---|
| Drive controller | Anjie Neng high-power controller |
| Battery type | CATL lithium battery |
| جهد البطارية / سعتها | 60V / 500Ah |
| Charging time | Approx. 5 hours |
| Continuous working time | Approx. 6 hours |
Chassis & handling
| Drive axle | 318 floating integrated heavy-duty drive axle |
|---|---|
| Steering axle | Heavy-duty forklift steering axle |
| الإطارات | Front 23×9-10 solid / Rear 18×7-8 wide solid |
| فرامل الخدمة | Hydraulic brake with power-off hand brake |
| نصف قطر الدوران | 90° in-place steering |
| Gradeability | 35° |
Mast & forks
| السارية | 160 mm national-standard high-manganese-steel mast |
|---|---|
| Lift cylinders | Reinforced double cylinders with enhanced sealing |
| الشوك | Heavy-duty forged forks |
| Hydraulic lift motor | 15 kW Hart permanent-magnet synchronous motor |
