Standard configuration
●Overhead guard · قياسي
●220V charger · قياسي
●Lighting and signals · قياسي
●1,220 mm forks · قياسي
○1,370 mm / 1,520 mm forks · اختياري
العربية

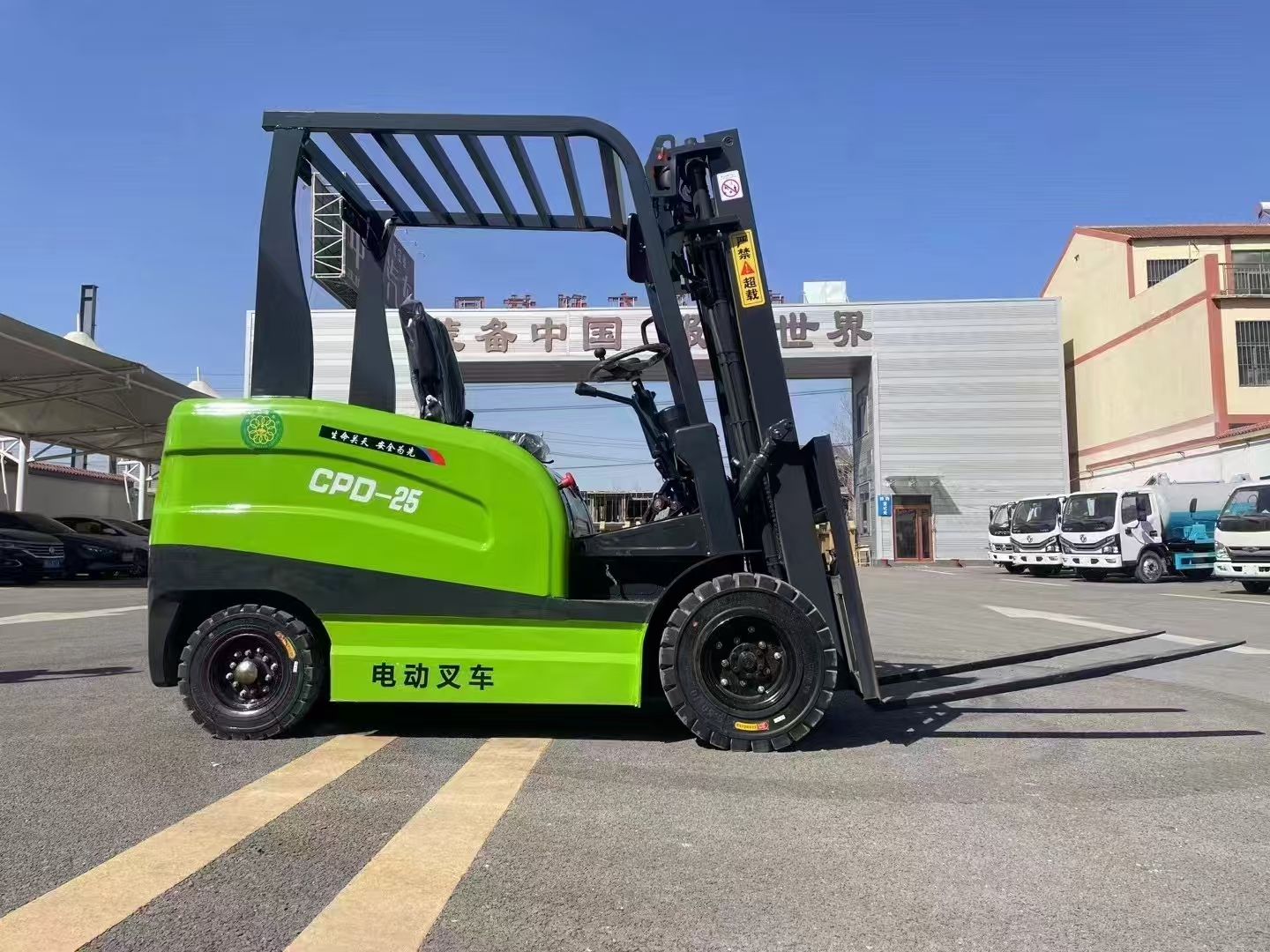

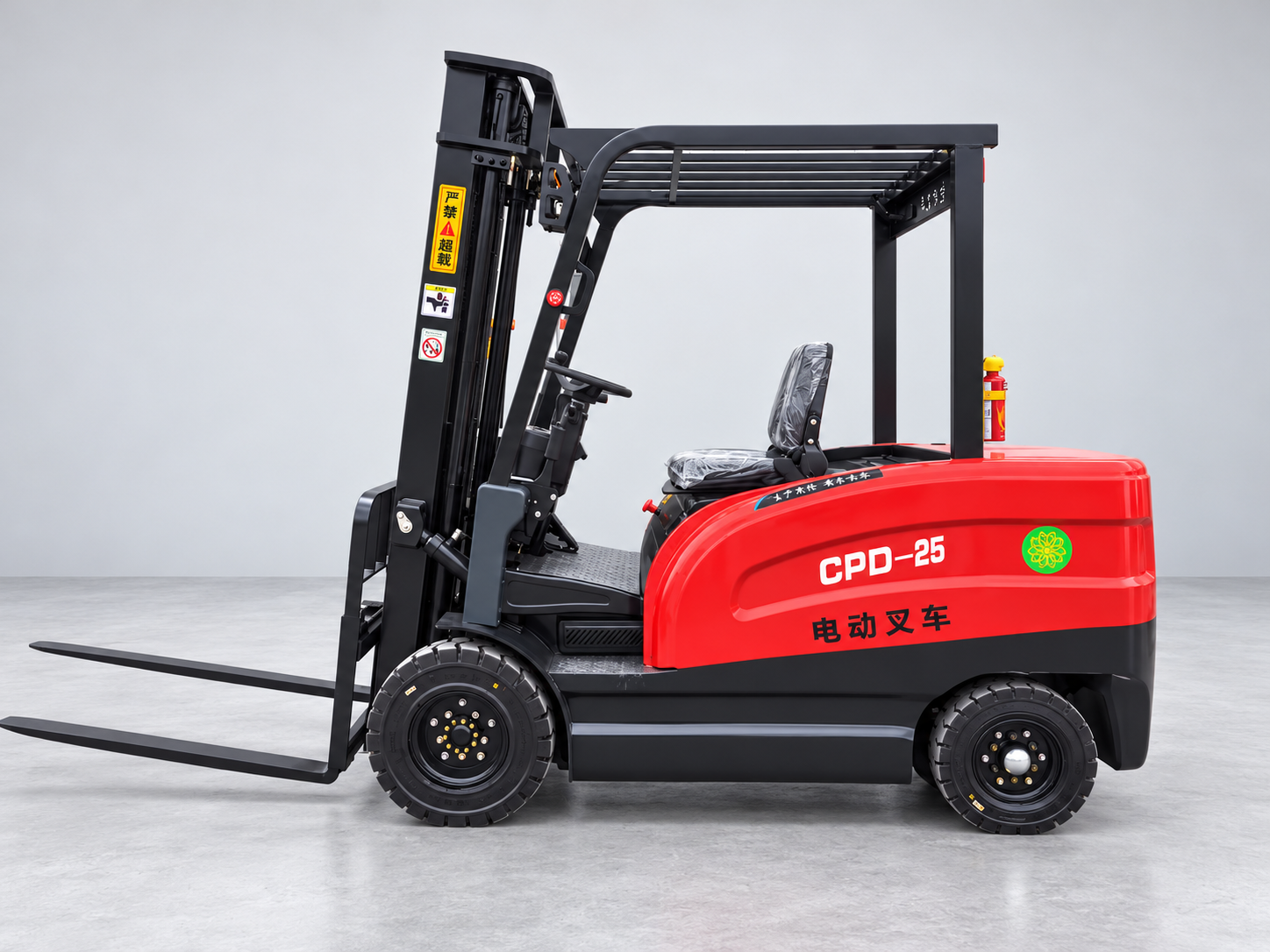

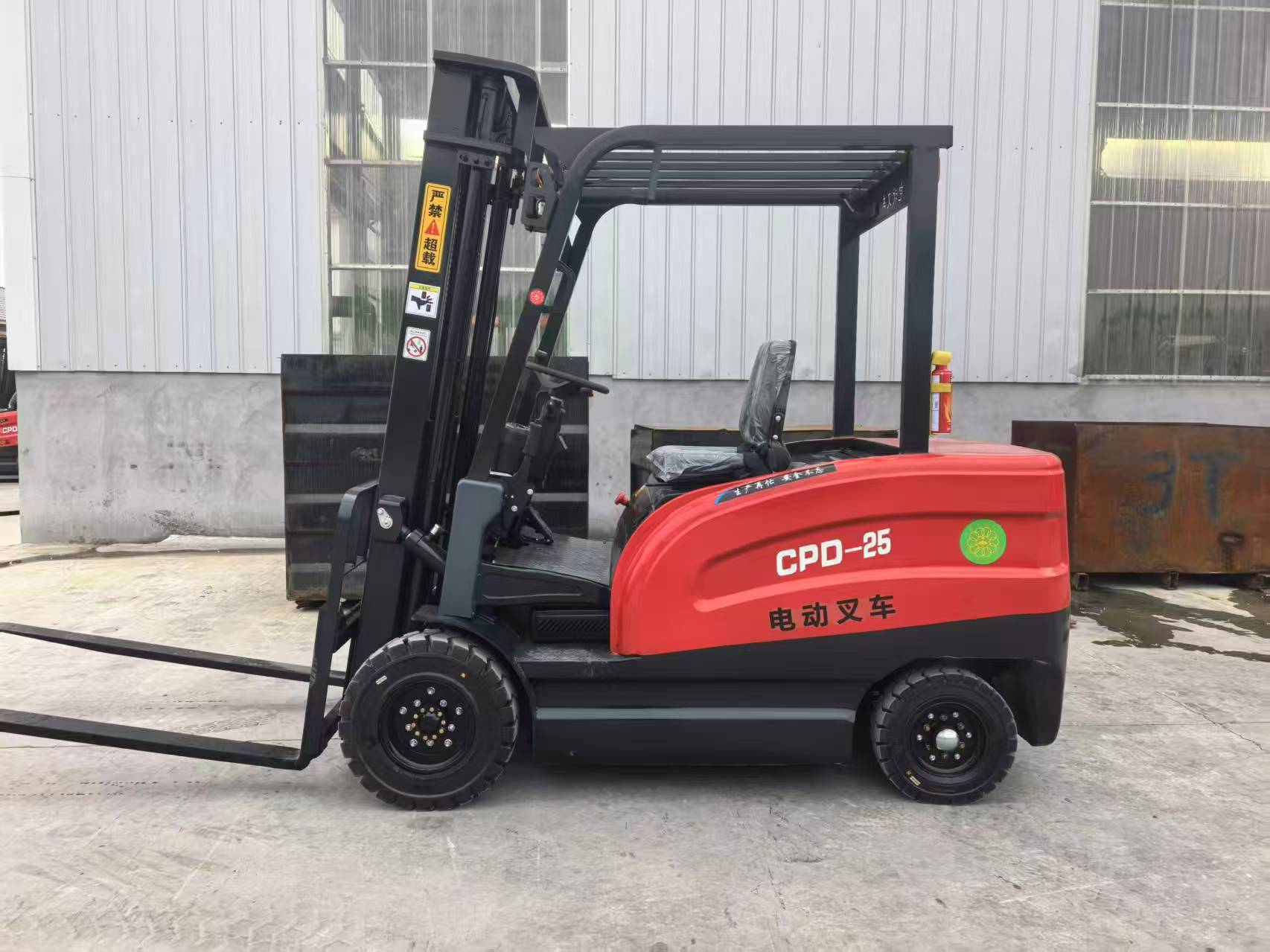

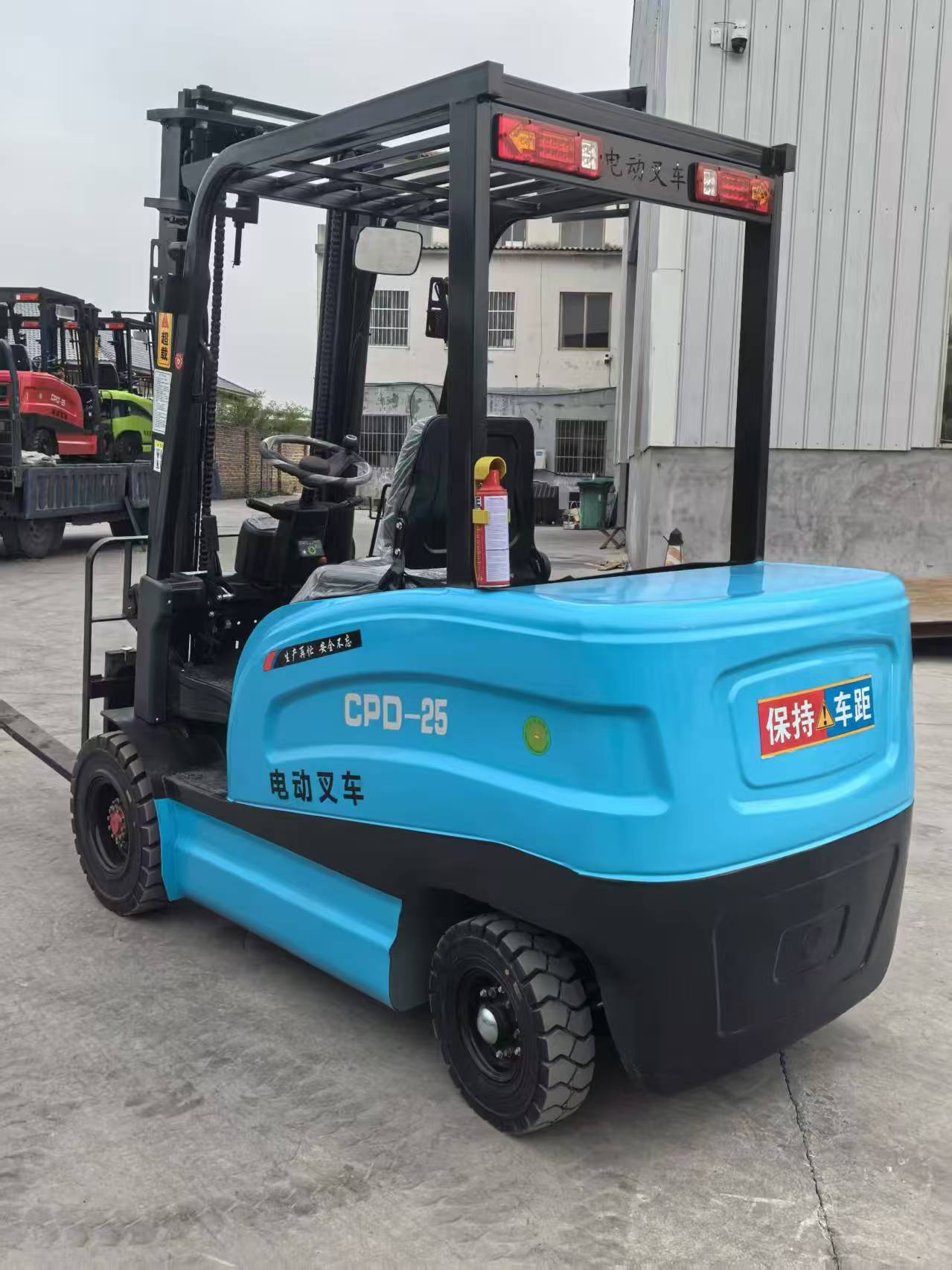

STUDIO VIEW · CPD-25
ELECTRIC FORKLIFT
CPD-25
2.5 Ton High-Configuration Lithium Electric Forklift
Factory-direct electric forklift configurable for distributor and industrial buyer requirements.
- الحمولة الاسمية
- 2,500 kg
- ارتفاع الرفع
- 3,000 mm
- البطارية
- 60V / 300Ah
- نصف قطر الدوران
- 90° in-place steering
✓ Technical confirmation before production✓ Product documentation as available✓ OEM configuration support
مصمم للعمل اليومي
ELECTRIC POWER.
رقابة عملية.
Quiet operation, zero local emissions and fewer routine service items make the platform suitable for indoor material flow.
التجهيزات القياسية والاختيارية
CONFIGURE CPD-25 FOR THE JOB.
● Standard equipment ○ Optional equipment. Final availability is confirmed in the technical agreement.
COMPLETE TECHNICAL DATA
CPD-25 PERFORMANCE SPECIFICATIONS
Values below are transcribed from the latest confirmed vehicle information sheet. Final configuration is governed by the signed agreement.
المواصفات الأساسية
| الحمولة الاسمية | 2,500 kg |
|---|---|
| ارتفاع الرفع القياسي | 3,000 mm |
| الوزن التشغيلي | 3,300 kg |
Vehicle dimensions
| Overall length, without forks | 2,500 mm |
|---|---|
| Overall length, with forks | 3,370 mm |
| العرض الإجمالي | 1,200 mm |
| Overall height | 2,150 mm |
| Body construction | Integrated pressed-steel body |
Electrical system
| Drive motor | 10 kW permanent-magnet synchronous motor |
|---|---|
| Drive controller | Anjie Neng travel controller |
| Battery type | CATL lithium battery |
| جهد البطارية / سعتها | 60V / 300Ah |
| Charging time | 5–6 hours |
| Continuous working time | Approx. 6 hours |
Chassis & handling
| Front axle | Full-floating integrated heavy-duty front axle |
|---|---|
| Rear axle | Heavy-duty forklift rear axle |
| الإطارات | Front 650-10 solid / Rear 500-8 solid |
| فرامل الخدمة | Hydraulic brake with hand brake |
| نصف قطر الدوران | 90° in-place steering |
| Gradeability | 35° |
Mast & forks
| السارية | 120 mm dedicated high-manganese-steel mast |
|---|---|
| Lift cylinders | Reinforced double cylinders with enhanced sealing |
| Fork length | 1,220 mm standard |
| Optional fork lengths | 1,370 mm / 1,520 mm |
استجابة تجارية سريعة
هل تحتاج إلى تجهيز
لسوقك؟
Tell us the load, lift height, quantity and working conditions. We reply within one business day.
